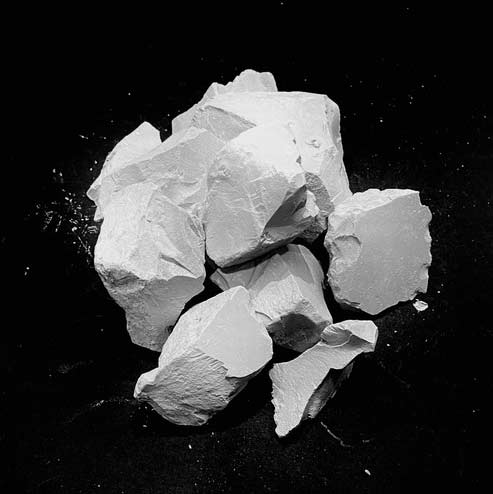

UBC-1 Ball Clay
UBC-1 Ball Clay is a premium-grade ceramic clay known for its excellent plasticity, fine texture, and strong binding properties. Processed under strict quality control, it offers consistent performance, smooth workability, and reliable firing characteristics for a wide range of industrial applications.
Uses:
- Ceramic Products
- Tiles
- Crockery Items
- Table Ware
- Tyre's
- Glass
- Insulators
Engineered for superior ceramic and industrial applications, UBC-1 Ball Clay delivers consistency, purity, and dependable performance in every batch.
Sub-Product Specifications
| CHEMICAL PROPERTIES XRF Verified | ||
|---|---|---|
| Si2o | % | 51.7 |
| Ai2o3 | % | 31.3 |
| Fe2o3 | % | 0.86 |
| Ti2o3 | % | 1.72 |
| CaO | % | 0.17 |
| MgO | % | 0.21 |
| K2O | % | 0.44 |
| Na2O | % | 0.12 |
| LOi | % | 11.6 |
| Total | 98.4 | |
| PHYSICAL PROPERTIES | ||
|---|---|---|
| MBI | mg g-1 | 42.4 |
| Sulphate | ppm | 631.6 |
| pH | - | 7.5 |
| Conductivity | uS | 1,866 |
| Soluble Salt | ppm | 1,120 |
| MoR(extruded) | Kg cm-2 | - |
| MoR(Dry) | - | 38.2 |
| WABS | % | 3.29 |
| L* | 81.2 | |
| Colour | a* | 1.32 |
| b* | 12.9 | |
| Shrinkage | % | 14.0 |
| Partical Size Distribution by SediGraph | Sleve Residue-wet Retention | ||||
|---|---|---|---|---|---|
| <7um | % | 93.3 | >125um | % | 1.27 |
| <5um | % | 92.3 | >75um | % | 1.16 |
| <2um | % | 86.8 | >45 um | % | 0.57 |
| <1um | % | 80.5 | Cumulative>45 | % | 2.99 |
Complete Technical Dossier
Download the full spectral analysis, safety data sheets, and industrial application guides for UBC-1.
